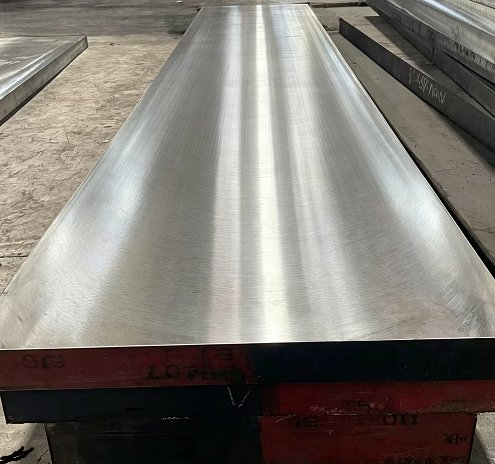

Inconel 617 UNS N06617 Heat-Resisting Superalloy Bars and plates
This is a solid-solution strengthened nickel-chromium-cobalt-molybdenum high-temperature corrosion-resistant alloy. With nickel as matrix and compound alloying elements including chromium, cobalt, molybdenum and aluminum, it delivers superior creep rupture strength, high-temperature oxidation resistance and carburization resistance up to 1100℃ with outstanding thermal cycle stability. It features excellent resistance to high-temperature flue gas corrosion and stress relaxation, favorable hot/cold formability and weldability. It can sustain alternating high-temperature loadings and harsh oxidizing service for long term, possessing far better structural stability than conventional high-temperature alloys.
Applications of Inconel 617
This material acts as core raw material for heavy-duty gas turbine combustion chambers, high-temperature load-bearing rings, aero-engine high-temperature structural parts and nuclear reactor core heat exchange components. It is applicable to industrial furnace radiant tubes, heat treatment fixtures and high-temperature flue heat-resistant parts. Widely adopted in petrochemical cracking furnaces, hydrogen energy high-temperature reaction equipment, aerospace high-temperature fasteners and waste incineration waste heat boilers, it is a premium special alloy dedicated for ultra-high temperature pressure-bearing and heat-resistant load-bearing critical equipment.
Equivalent Grades and Commonly Used Specifications of Inconel 617
| Steel Grade | Specification | Specification Name |
| GH617 / GH3617 | GB/T 14992 | Superalloys and intermetallic compounds-Designation and chemical composition |
| UNS N06617/ Inconel 617 | ASTM B166 | Standard Specification for Ni-Cr-Al Alloy, Ni-Cr-Fe Alloys, Ni-Cr-Co-Mo Alloy, Ni-Fe-Cr-W Alloy and Ni-Cr-Mo-Cu Alloy Rod, Bar, and Wire |
| ASTM B168 | Standard Specification for Ni-Cr-Fe Alloys, Ni-Cr-Co-Mo Alloy, and Ni-Fe-Cr-Ta Alloy Plate, Sheet, and Strip | |
| ASTM B564 | Standard Specification for Nickel Alloy Forgings | |
| ASTM B546 | Standard Specification for Nickel-Chromium-Iron Alloys and Nickel-Chromium-Cobalt-Molybdenum Alloy Welded Pipe | |
| UNS N06617/ Inconel 617 | ASME SB-166 | Standard Specification for Nickel-Chromium-Iron Alloys and Nickel-Chromium-Cobalt-Molybdenum Alloy Bar, Rod, Wire |
| ASME SB-167 | Standard Specification for Nickel-Chromium-Iron Alloys and Nickel-Chromium-Cobalt-Molybdenum Alloy Seamless Pipe and Tube | |
| ASME SB-168 | Standard Specification for Nickel-Chromium-Iron Alloys and Nickel-Chromium-Cobalt-Molybdenum Alloy Plate, Sheet, and Strip | |
| AMS 5887 | Nickel Alloy, Corrosion and Heat Resistant, Bars, Forgings, and Rings, Solution Treated | |
| AMS 5889 | Nickel Alloy, Corrosion and Heat Resistant, Sheet and Strip, Solution Treated | |
| Products produced as per other specifications or technical agreements (if need) are available. | ||
Typical Chemical Composition of Inconel 617
|
Elements |
C | Si | Mn | S | Ni | Cr | Co | Mo | Ti | Al | Fe | Cu | Mg |
B |
|
Contents% |
0.05~0.15 | ≤1.00 | ≤1.00 | ≤0.015 | Balance | 20.00~24.00 | 10.00~15.00 | 8.00~10.00 | ≤0.60 | 0.80~1.50 | ≤3.00 | ≤0.50 | ≤1.00 |
≤0.006 |
| Products produced as per other specifications or technical agreements (if need) are available. | ||||||||||||||
Typical Heat Treatment Condition and Mechanical Properties of Inconel 617
|
Delivery Condition |
Mechanical Properties and Hardness of Heat-Treated Specimens | ||||||
| Rp0.2/(N/mm2) | Rm/(N/mm2) | A/% | Zb/% | Aku2d/J | HBW |
HRC |
|
|
Annealed Condition(Cold-worked or hot-worked ) |
≥240 | ≥655 | ≥35 | / | / | / |
/ |
| Products produced as per other specifications or technical agreements (if need) are available. | |||||||
Product Forms and Size Range of Inconel 617
|
Product forms |
Size range |
|
Bars |
Diameter or side length: 5.0mm~1000mm |
| Flats |
thickness: 4.0mm~1000mm width: 300mm~2200mm |
| Produce as other form and size according to technical requirements are available. | |
