4Cr9Si2 Martensitic Stainless Steel Bars and plates
It is a chromium-silicon martensitic valve steel that resists oxidation below 750°C. Below 800°C, it can form a dense oxide film to resist high-temperature oxidation. It also features certain high-temperature strength and corrosion resistance, with excellent high-temperature oxidation resistance, relatively low cost, and good processability.
Applications of 4Cr9Si2
It is mainly used for manufacturing components subjected to moderate-temperature service, such as boiler superheaters, steam pipelines and gas turbine combustion chambers. It is also applicable to structural parts operating under high-temperature environments including automobile exhaust systems and industrial furnaces, and can be used to fabricate intake valves for internal-combustion engines as well as exhaust valves for light-load engines.
Equivalent Grades and Commonly Used Specifications of 4Cr9Si2
| Steel Grade | Specification | Specification Name |
| 4Cr9Si2/ 42Cr9Si2 / S48040 | GB/T 1221 | Heat-resistant steel bars |
| GB/T 12773 | Valve steel and superalloy bars for internal combustion engines | |
| SUH11 | JIS G 4311 | Heat-resistant steel bars and wires |
| 40Х9С2/
4Х9С2 |
GOST 5632 | High-alloy steels and corrosion-proof, heat-resisting and high-temperature alloys grades |
| Produce as other form and size according to technical requirements are available. | ||
Typical Chemical Composition of 4Cr9Si2
|
Elements |
C | Si | Mn | P | S | Ni | Cr |
|
Contents% |
0.35~0.50 | 2.00~3.00 | ≤0.70 | ≤0.035 | ≤0.030 | ≤0.60 |
8.00~10.00 |
| Produce as other form and size according to technical requirements are available. | |||||||
Typical Heat Treatment Condition and Mechanical Properties of 4Cr9Si2
|
Delivery Condition |
Mechanical Properties and Hardness of Heat-Treated Specimens | |||||
| Rp0.2/(N/mm2) | Rm/(N/mm2) | A/% | Zb/% | Aku2d/J |
HBW |
|
|
Annealed Condition |
/ | / | / | / | / | ≤269 |
| Q+T（1020℃-1040℃, oil; 700℃-780℃, oil | ≥590 | ≥885 | ≥19 | ≥50 | / |
/ |
| Produce as other form and size according to technical requirements are available. | ||||||

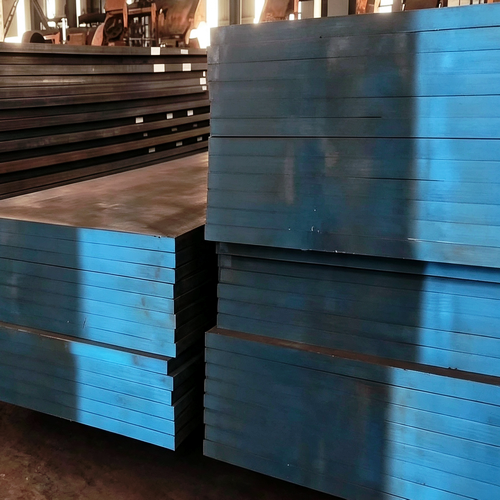

Product Forms and Size Range of 4Cr9Si2
|
Product forms |
Size range |
|
Bars |
Diameter or side length: 5.0mm~1000mm |
| Flats |
thickness: 4.0mm~1000mm width: 300mm~2200mm |
| Produce as other form and size according to technical requirements are available. | |
