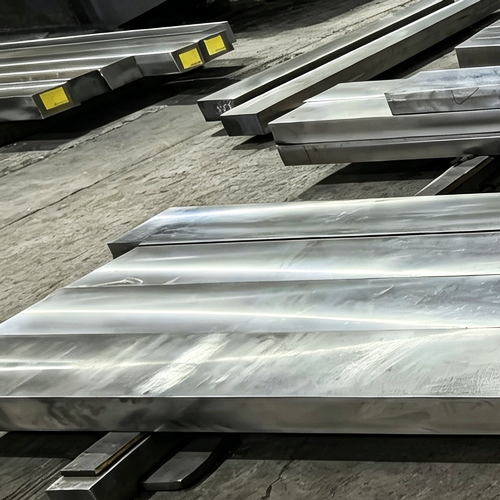

1Cr14Ni3W2VB Martensitic Stainless Steel Bars and plates

It is a high-strength martensitic stainless steel with high strength and hardness, suitable for withstanding heavy loads and impact loads. It also exhibits good high-temperature performance and is applicable to medium and high-temperature environments below 600°C. Its excellent wear resistance and fatigue resistance can extend the service life of key components. Compared with conventional martensitic stainless steels, it features a more superior balance of comprehensive properties.

Request a Quote

Applications of 1Cr14Ni3W2VB

It is mainly used for high-temperature load-bearing components in aero-engines and gas turbines, such as high-pressure compressor blades, turbine disks, fasteners, and combustion chamber components. It is also suitable for marine power systems, high-temperature and high-pressure valves in petrochemical industry, corrosion-resistant structural parts in nuclear industry, and high-stress mold manufacturing. It is particularly suitable for critical parts and components serving in corrosive media, high mechanical loads, and thermal fatigue conditions.

Equivalent Grades and Commonly Used Specifications of 1Cr14Ni3W2VB

Steel Grade	Specification	Specification Name
1Cr14Ni3W2VB/ 13Cr14Ni3W2VB /S47710	GB/T 20878	Stainless and Heat-Resisting Steels – Designation and Chemical Composition
Produce as other form and size according to technical requirements are available.

Typical Chemical Composition of 1Cr14Ni3W2VB

Elements	C	Si	Mn	P	S	Ni	Cr	W	Ti	B	V
Contents%	0.10~0.16	≤0.60	≤0.60	≤0.300	≤0.030	2.80~3.40	13.00~15.00	1.60~2.20	≤0.05	≤0.004	0.18~0.28
Produce as other form and size according to technical requirements are available.

Product Forms and Size Range of 1Cr14Ni3W2VB

Product forms	Size range
Bars	Diameter or side length: 5.0mm~1000mm
Flats	thickness: 4.0mm~1000mm width: 300mm~2200mm
Produce as other form and size according to technical requirements are available.
