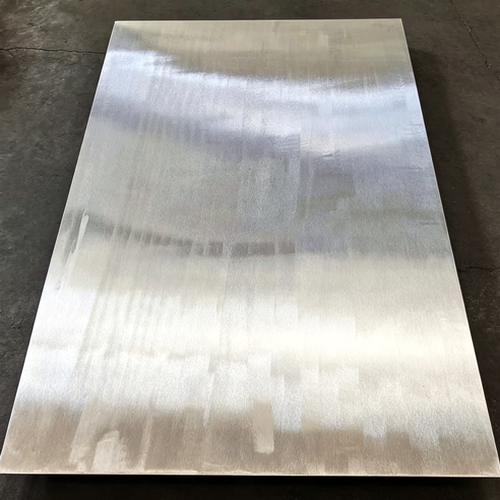

UNS S66286 Age-Hardening Stainless Steel Bars and Plates
This is an austenitic precipitation-hardening steel characterized by high notch toughness, excellent high-temperature resistance, high strength, and outstanding oxidation and corrosion resistance. The steel retains superior mechanical properties within the temperature range of 600℃ to 750℃, while also exhibiting good weldability and formability. Moreover, when the temperature is below 980℃, its oxidation resistance is comparable to that of 06Cr25Ni20 (0Cr25Ni20).
Applications of UNS S66286
Primarily used in working environments below 700℃, these components or devices require high strength and excellent corrosion resistance—for example, turbine rotors, blades, combustion chamber frame components, and bolts. In advanced equipment manufacturing, they are also employed in corrosion-resistant fasteners, special springs, and precision components that demand high strength and toughness.
Equivalent Grades and Commonly Used Specifications of UNS S66286
| Steel Grade | Specification | Specification Name |
| 0Cr15Ni25Ti2MoAlVB / 06Cr15Ni25Ti2MoAlVB / S51525 | GB/T 4238 | Heat-resisting steel plate, sheet and strip |
| 660/ S66286 | ASTM A959 | Standard Guide for Specifying Harmonized Standard Grade Compositions for Wrought Stainless Steels |
| X6NiCrTiMoVB25-15-2/ 1.4980 | BS EN 10302 | Creep resisting steels, nickel and cobalt alloys |
| SUH660 | JIS G 4311 | Heat-resistant steel bars and wires |
| JIS G 4312 | Heat-resisting steel plates and sheets | |
| JIS G 4315 | Stainless steel wires for cold heading and cold forging | |
| Produce as other form and size according to technical requirements are available. | ||
Typical Chemical Composition of UNS S66286
|
Elements |
C | Si | Mn | P | S | Ni | Cr | Mo | Al | Ti | B | V |
|
Contents% |
≤0.08 |
≤1.00 | ≤2.00 | ≤0.040 | ≤0.030 | 24.00~27.00 | 13.50~16.00 | 1.00~1.50 | ≤0.35 | 1.90~2.35 | 0.001~0.010 |
0.10~0.50 |
| Produce as other form and size according to technical requirements are available. | ||||||||||||
Typical Heat Treatment Condition and Mechanical Properties of UNS S66286
|
Delivery Condition |
Mechanical Properties and Hardness of Heat-Treated Specimens | ||||||
| Rp0.2/(N/mm2) | Rm/(N/mm2) | A/% | Zb/% | Akv2d/J | HBW |
HRC |
|
|
Solution Treated（885℃-915℃, cool rapidly）; Precipitation Hardening（700℃-760℃, 16h, air） |
≥590 | ≥900 | ≥15 | / | / | ≥248 |
≥101 |
| Produce as other form and size according to technical requirements are available. | |||||||
Product Forms and Size Range of UNS S66286
|
Product forms |
Size range |
|
Bars |
Diameter or side length: 5.0mm~1000mm |
| Flats |
thickness: 4.0mm~1000mm width: 300mm~2200mm |
| Produce as other form and size according to technical requirements are available. | |
