SUH4 Martensitic Stainless Steel Bars and plates
It is a chromium-silicon-nickel martensitic valve steel, featuring excellent wear resistance, high hardness, and good corrosion resistance. It also has good fatigue resistance and moderate toughness, making it suitable for high-load working conditions. However, it has poor weldability and high processing difficulty, and its high carbon content may lead to brittleness tendency.
Applications of SUH4
It is used to manufacture intake valves, exhaust valves, valve seats and other components mainly requiring wear resistance. It is also applied to high-end cutting tools (such as kitchen knives, surgical instruments), bearing components, valve parts, and industrial machinery components that need wear resistance and corrosion resistance.
Equivalent Grades and Commonly Used Specifications of SUH4
| Steel Grade | Specification | Specification Name |
| 8Cr20Si2Ni / 80Cr20Si2Ni / S48380 | GB/T 1221 | Heat-resistant steel bars |
| GB/T 12773 | Valve steel and superalloy bars for internal combustion engines | |
| SUH4 | JIS G 4311 | Heat-resistant steel bars and wires |
| 80Х20Н2С2 | GOST 5632 | High-alloy steels and corrosion-proof, heat-resisting and high-temperature alloys grades |
| Produce as other form and size according to technical requirements are available. | ||
Typical Chemical Composition of SUH4
|
Elements |
C | Si | Mn | P | S | Ni | Cr |
|
Contents% |
0.75~0.85 |
1.75~2.25 | 0.20~0.60 | ≤0.030 | ≤0.030 | 1.15~1.65 |
19.00~20.50 |
| Produce as other form and size according to technical requirements are available. | |||||||
Typical Heat Treatment Condition and Mechanical Properties of SUH4
|
Delivery Condition |
Mechanical Properties and Hardness of Heat-Treated Specimens | |||||
| Rp0.2/(N/mm2) | Rm/(N/mm2) | A/% | Zb/% | Aku2d/J |
HBW |
|
|
Annealed Condition（800℃-900℃, cool slowly or 720℃, air） |
/ | / | / | / | / | ≤321 |
| Q+T（1030℃-1080℃, oil; 700℃-800℃, cool rapidly | ≥685 | ≥885 | ≥10 | ≥15 | ≥8 |
≥262 |
| Produce as other form and size according to technical requirements are available. | ||||||
Product Forms and Size Range of SUH4
|
Product forms |
Size range |
|

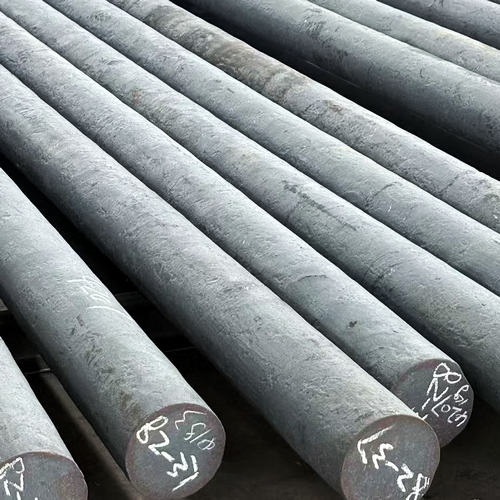

Bars |
Diameter or side length: 5.0mm~1000mm |

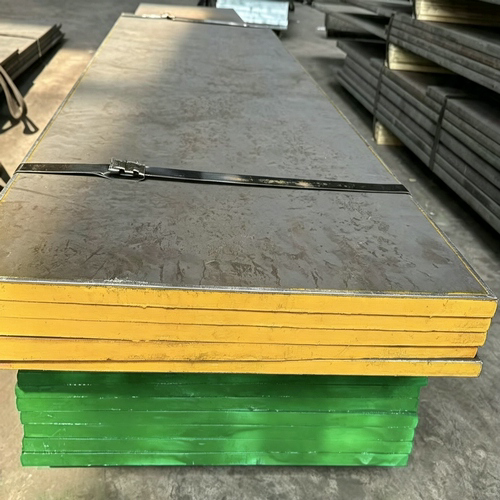

| Flats |
thickness: 4.0mm~1000mm width: 300mm~2200mm |
| Produce as other form and size according to technical requirements are available. | |
