2Cr11NiMoNbVN Martensitic Stainless Steel Bars and plates
It is a martensitic heat-resistant stainless steel with high high-temperature strength and good oxidation resistance. It maintains good mechanical stability in the temperature range of 500°C to 600°C, while also offering certain corrosion resistance and machinability. Additionally, it features good strength-toughness, creep resistance, and stress relaxation resistance.
Applications of 2Cr11NiMoNbVN
This material is mainly used for high-temperature components such as high-pressure section blades of steam turbines and gas turbine nozzles. It can also be applied to equipment parts subjected to high temperature and pressure in the petrochemical industry, and has certain applications in scenarios such as auxiliary components of aero-engines.
Equivalent Grades and Commonly Used Specifications of 2Cr11NiMoNbVN
|
Steel Grade |
Specification |
Specification Name |
| 2Cr11NiMoNbVN / 18Cr11NiMoNbVN / S47450 | GB/T 1221 | Heat-resistant steel bars |
| GB/T 8732 | Steels of blade for steam turbine | |
| Produce as other form and size according to technical requirements are available. | ||
Typical Chemical Composition of 2Cr11NiMoNbVN
|
Elements |
C | Si | Mn | P | S | Ni | Cr | Mo | N | V | Al | Nb |
|
Contents% |
0.15~0.20 | ≤0.50 | 0.50~0.80 | ≤0.030 | ≤0.025 | 0.30~0.60 | 10.00~12.00 | 0.60~0.90 | 0.04~0.09 | 0.20~0.30 | ≤0.30 |
0.20~0.60 |
| Produce as other form and size according to technical requirements are available. | ||||||||||||
Typical Heat Treatment Condition and Mechanical Properties of 2Cr11NiMoNbVN
|
Delivery Condition |
Mechanical Properties and Hardness of Heat-Treated Specimens | |||||
| Rp0.2/(N/mm2) | Rm/(N/mm2) | A/% | Zb/% | Aku2d/J |
HBW |
|
|
Annealed Condition（800℃-900℃, cool slowly） |
/ | / | / | / | / | ≤255 |
| Q+T（≥1090℃, oil; ≥640℃, air) | ≥760 | ≥930 | ≥12 | ≥32 | ≥20 |
277~331 |
| Produce as other form and size according to technical requirements are available. | ||||||
Product Forms and Size Range of 2Cr11NiMoNbVN
|
Product forms |
Size range |
|

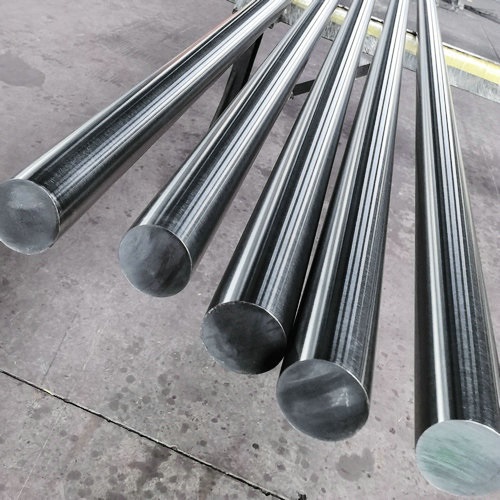

Bars |
Diameter or side length: 5.0mm~1000mm |
| Flats |
thickness: 4.0mm~1000mm width: 300mm~2200mm |
| Produce as other form and size according to technical requirements are available. | |
