1Cr12Mo Martensitic Stainless Steel Bars and plates
It is a chromium-molybdenum martensitic heat-resistant steel with high strength, hardness, and wear resistance, as well as certain corrosion and heat resistance. However, it has poor weldability and is prone to cold cracking. Prolonged service at high temperatures may lead to a reduction in toughness. It is suitable for applications requiring high strength combined with moderate corrosion resistance, but strict control of processing and heat treatment processes is required.
Applications of 1Cr12Mo
Widely used in fields such as steam turbine blades, pump shafts, valve parts, fasteners, cutting tools, and high-strength corrosion-resistant structural components. In the electric power, petrochemical, and machinery manufacturing industries, this material is commonly used to produce high-temperature and wear-resistant components, such as turbine parts, bearing rings, and molds.
Equivalent Grades and Commonly Used Specifications of 1Cr12Mo
|
Steel Grade |
Specification |
Specification Name |
|
1Cr12Mo / 12Cr12Mo / S45610 |
GB/T 1221 | Heat-resistant steel bars |
| GB/T 8732 2014 |
Steels for steam turbine blades |
|
| Products produced as per other specifications or technical agreements (if need) are available. | ||
Typical Chemical Composition of 1Cr12Mo
|
Elements |
C | Si | Mn | P | S | Ni | Cr | Mo | Cu |
|
Contents% |
0.10~0.15 | ≤0.50 | 0.30~0.50 | ≤0.035 | ≤0.030 | 0.30~0.60 | 11.50~13.00 | 0.30~0.60 |
≤0.30 |
| Products produced as per other specifications or technical agreements (if need) are available. | |||||||||
Typical Heat Treatment Condition and Mechanical Properties of 1Cr12Mo
|
Delivery Condition |
Mechanical Properties and Hardness of Heat-Treated Specimens | ||||||
| Rp0.2/(N/mm2) | Rm/(N/mm2) | A/% | Zb/% | Aku2d/J | HBW |
HRC |
|
|
Annealed Condition（800℃-900℃, cool slowly；750℃ cool rapidly） |
/ | / | / | / | / | ≤255 | / |
| Q+T（950℃-1000℃, oil; 700℃-750℃, cool rapidly） | ≥550 | ≥685 | ≥18 | ≥60 | ≥78 | 217~248 |
/ |
| Products produced as per other specifications or technical agreements (if need) are available. | |||||||
Product Forms and Size Range of 1Cr12Mo
|
Product forms |
Size range |
|

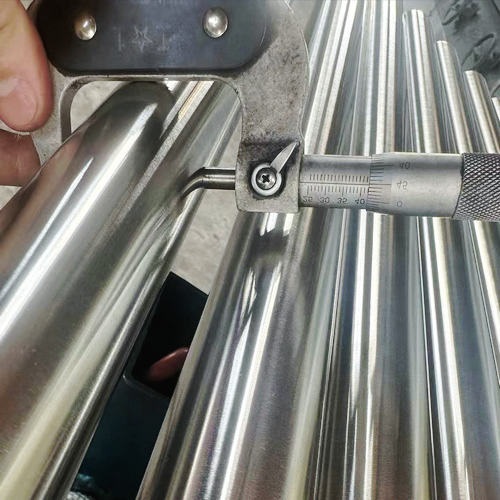

Bars |
Diameter or side length: 5.0mm~1000mm |
| Flats |
thickness: 4.0mm~1000mm width: 300mm~2200mm |
| Produce as other form and size according to technical requirements are available. | |
